ENVE INDR FREEHUB CONVERSION KITS - Shimano / Campagnolo / XDR - (New InnerDrive Hub)

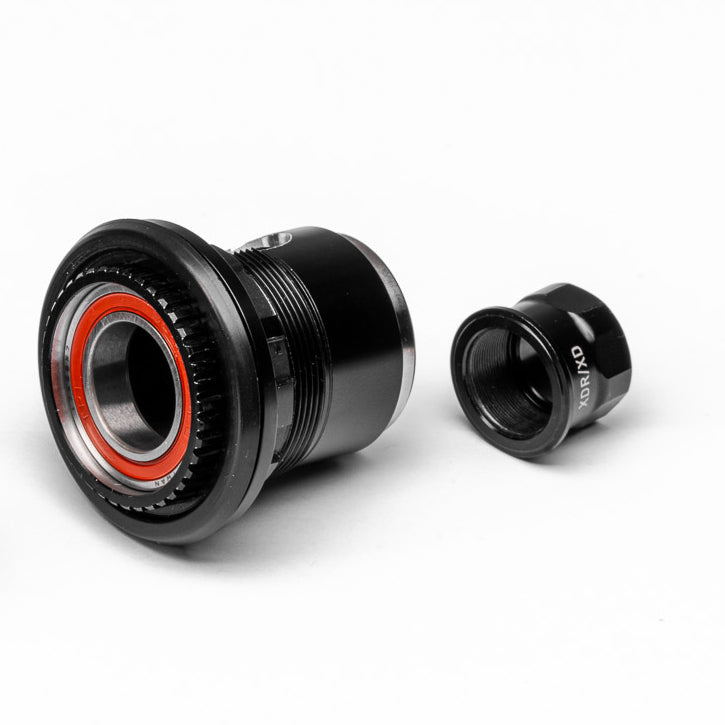

Conversion Kit consists:

- Freehub Body - Includes (2) bearings in Freehub body. (Installed)
- Drive-side end cap
- Rubber Seal

--------------

Please note this Freehub conversion is only for the new InnerDrive (INDR).
It is NOT compatible with the older Enve ID360 hubs .

If you aren't sure which hubs you have, drop us a pic at info@elitecustom.sg

A quick way to tell is;

ID360 Hubs = J-Bend
INDR Hubs = Straight-Pull


--------------
<Elite Tech Notes> Enve Innerdrive Installation

To open rear hub, use (2) 18mm wrenches.
We do not recommend using a vice clamp or spanners as they may damage the end caps.

Ensure parts are clean before installation to prevent any contamination with hub internals.

1) Rubber seal has a direction.
2) Sit the seal nicely, but do not overlap the lip of the freehub.
3) Greasing the seal lightly with a brush helps with installation and longevity.

Please reference diagrams in this listing before installation.

Post installation check:
Freehub should be smooth.
If draggy, likely seal is not installed properly.
