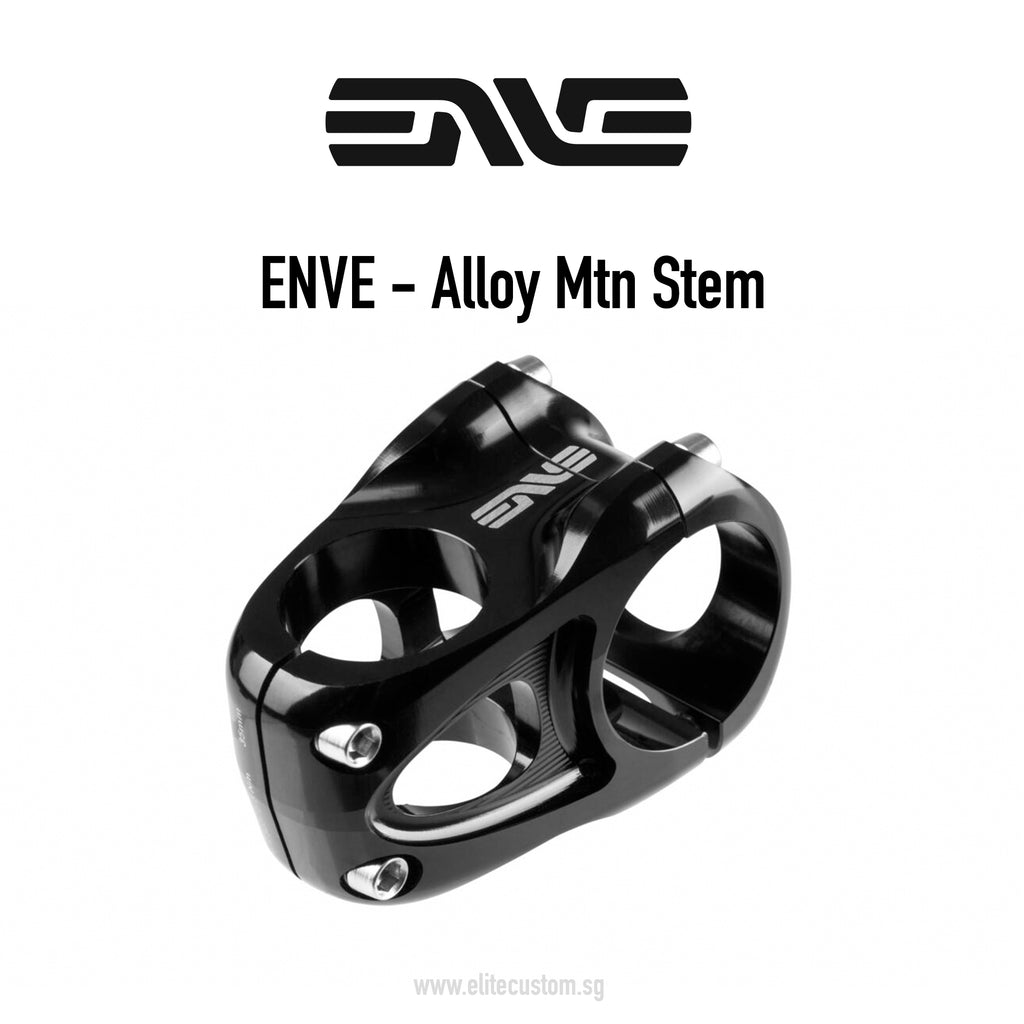

A 3D-forged then precision machined lightweight aluminum mountain bike stem in both 31.8mm and 35.0mm models rated for cross country, trail, all-mountain, enduro and gravity applications.
We are carbon experts, but that doesn’t mean we don’t know our way around aluminum as well. The success of our carbon parts relies on our ability to precisely machine the aluminum and steel molds in which our carbon rims and components are made. In fact, we’ve been machining aluminum and steel long before we ever pulled a carbon part from a mold. Accuracy, precision, and durability are key components to making an aluminum mold for carbon parts, and they just so happen to be the same ingredients required for making a premium grade aluminum mountain bike stem.
Our goal for the Alloy Mountain Stem was a product defined by strength, light-weight, ride quality and aesthetics that honor the art of machining aluminum while preserving as many of the performance benefits of our carbon M Series Handlebars. To achieve this, each alloy stem is cold-forged, and then extensively machined.
The result is an incredibly strong and reliable stem, at only a slight weight penalty to carbon, but lighter than most premium alloy stems on the market. Given that stems and handlebars function as a team, the Alloy Mountain Stem’s clamp width is designed to complement M Series carbon handlebars and their unique flex profiles. To further perfect the pairing, the surfaces of the stem’s clamp area are refined to prevent damage to our M Series carbon handlebars. Additionally, the Alloy Mountain Stem features blind bolt holes to prevent sharp edges and battered knees. Finally, stainless steel hardware is used to achieve hard wearing durability without the risk of corrosion.
The ENVE Alloy Mountain Stem is designed to deliver a more affordable alternative to the ENVE M6 & M7 Carbon Stems while at the same time giving you the rider, the confidence to ride without limitations.
Blind Bolt Holes and Shaping
Nothing sucks more than smashing your knee or tearing your shorts on sharp edges or exposed threads. Although more expensive and challenging to manufacture, blind bolt holes and the rounded shapes at the back of the stem help prevent this.
Cold-Forged and Precision Machined
Cold-forged and precision machined for maximum strength and weight savings. Cold-forging is a process of smashing a block of raw aluminum billet into a shape. This process increases strength and reliability of the part by aligning the grain structure of the alloy. Following this process, the forging is then machined to its final shape.
No Gap Face Plate and Clamp Area
No gap face plate and clamp area – Ensures even clamping and secure handlebar retention. Clamp area features beveled edges to prevent scoring of sensitive carbon handlebar laminates.
Stainless Hardware
Stainless hardware – M5 stainless steel hardware ensures reliable corrosion free performance over the long haul.
Clamp Diameter |
31.8mm |
35mm |
Material |
Aluminum |
Aluminum |
Length |
35mm, 50mm, 65mm |
35mm, 50mm, 65mm |
Rise |
+/- 0 degrees |
+/- 0 degrees |
Steerer Clamp Diameter |
1 1/8” |
1 1/8” |
Faceplate Material |
Aluminum |
Aluminum |
Hardware Material |
Stainless Steel |
Stainless Steel |
Stack Height |
40mm |
40mm |
Torque Spec: Face Plate |
5.5Nm |
5.5Nm |
Torque Spec: Steer Tube |
5.5Nm |
5.5Nm |
Weight |
115g (35mm), 139g (50mm), 160g (65mm) |
118g (35mm), 139g (50mm), 168g (65mm) |
