| CRANK |

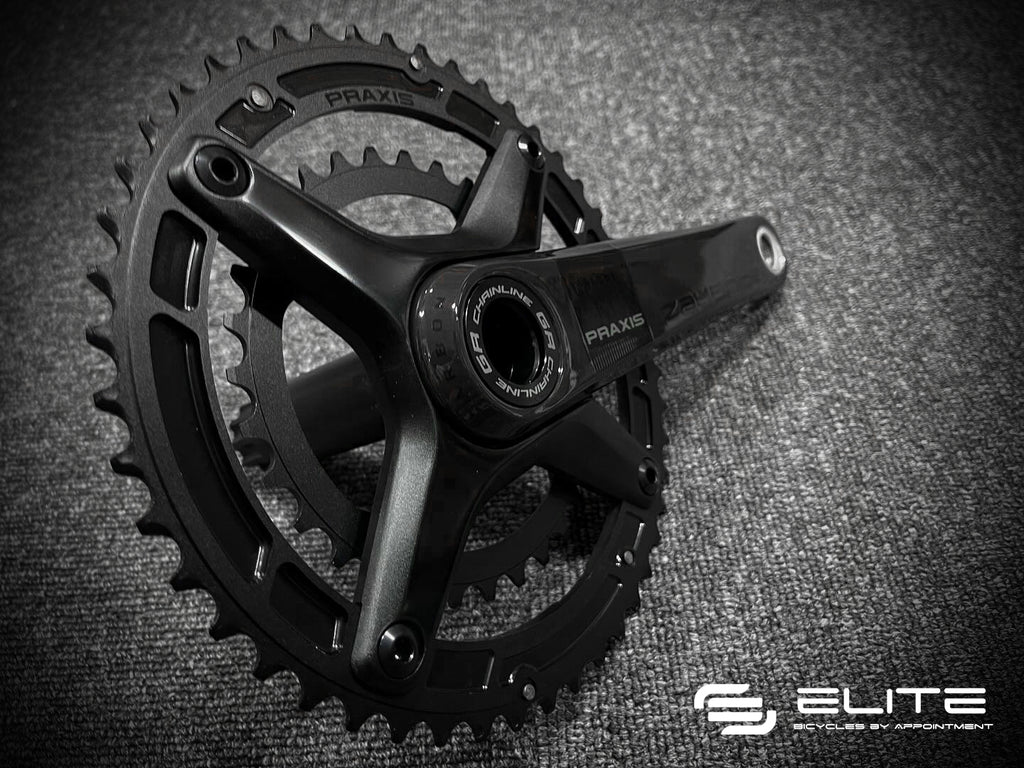

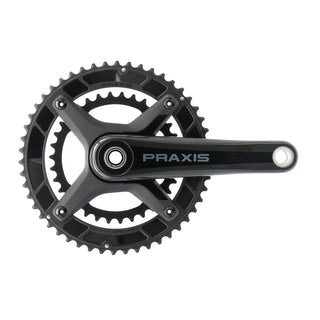

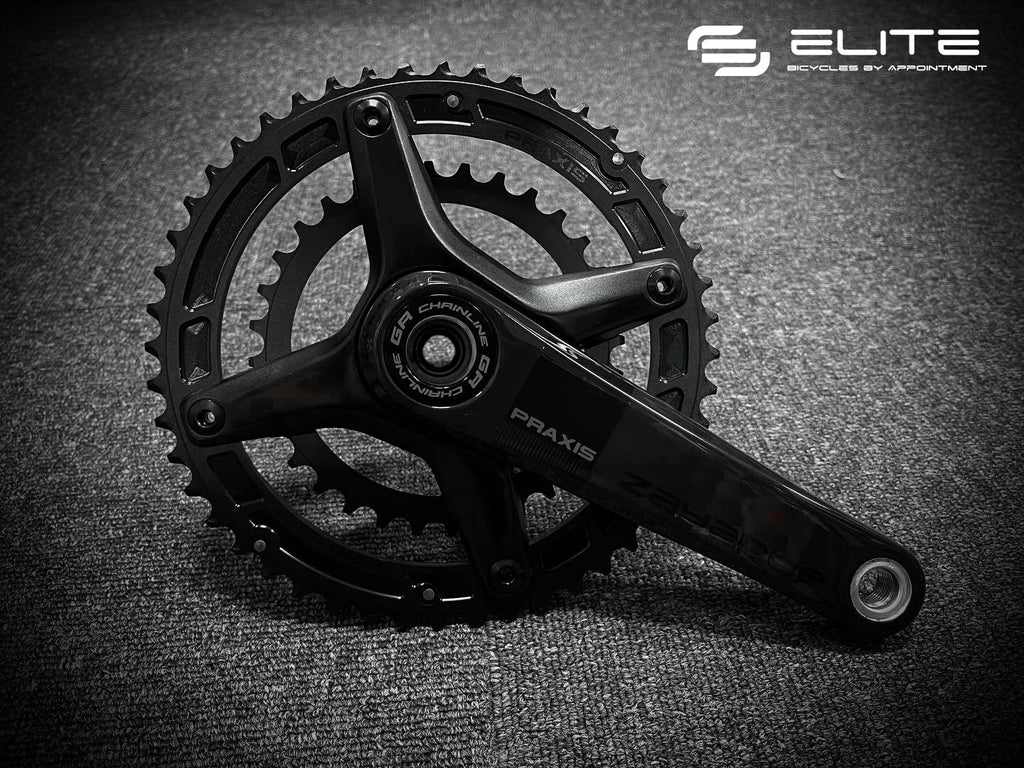

Carbon crankset specifically for Gravel 2X wider chainline. |
| BUY THIS IF : |
You want a performance carbon gravel crank that is 10/11/12sp compatible with 2X Shimano GRX or the 2X SRAM Wide" gravel groups. |
| MATERIAL |
Carbon Arms | Alloy Spider & Rings | Alloy M30 spindle (30mm/28mm) |
| GEARING |

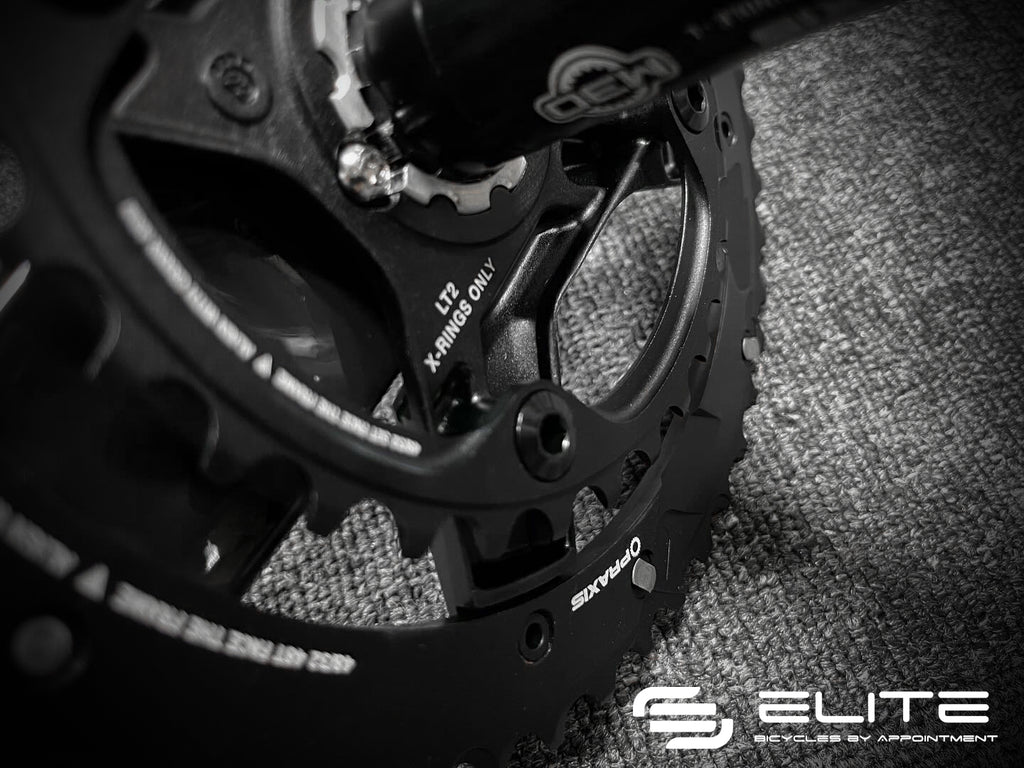

48/32 | Lightweight LevaTime II X-RINGS | w/Alloy chainring bolts |
| CHAIN |
10/11/12sp | KMC / Shimano / SRAM |
| AVG. WEIGHT |
605g : 172.5 with 48/32 |

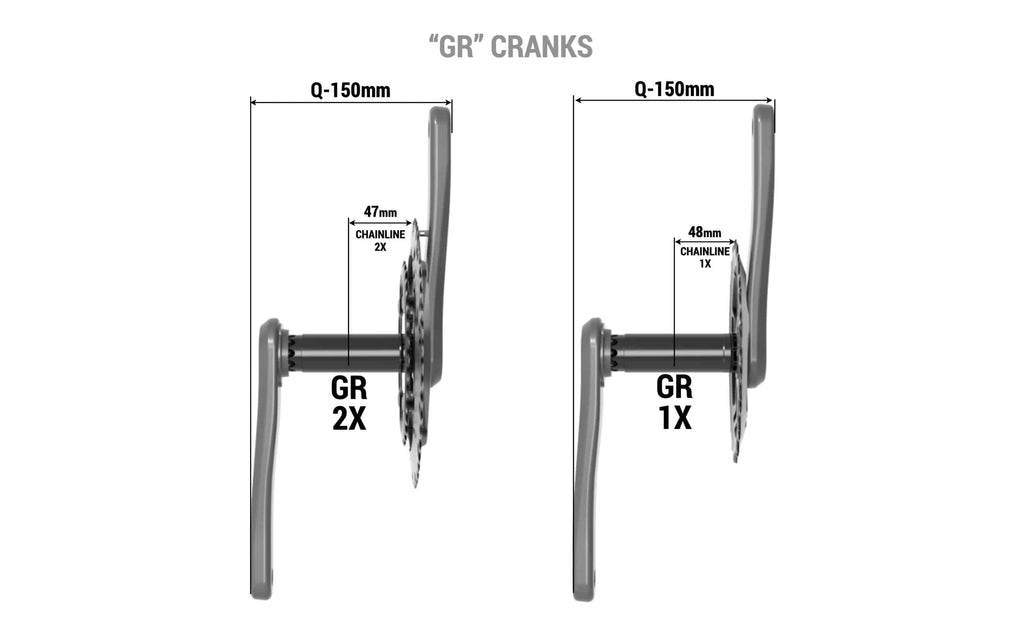

| CHAINLINE |
2X = 47mm GRAVEL : Specifically for use with Shimano 2X "GRX" and SRAM 2X "WIDE" front derailleurs.
1X = 48mm GRAVEL : If you install a DM1X Road/Gravel ring |
| Q-Factor |
150mm |
| DRIVETRAIN |
SHIMANO "GRX" 2X GRAVEL - Compatible with both Di2 and mechanical Shimano 10/11/12sp.
SRAM "WIDE" 2X GRAVEL - Compatible with both e-Tap and mechanical SRAM 10/11/12sp.
Made specificaly for use with Shimano 2X "GRX" and the SRAM 2X "WIDE" front deraileur gravel groups. |
B.B.
|

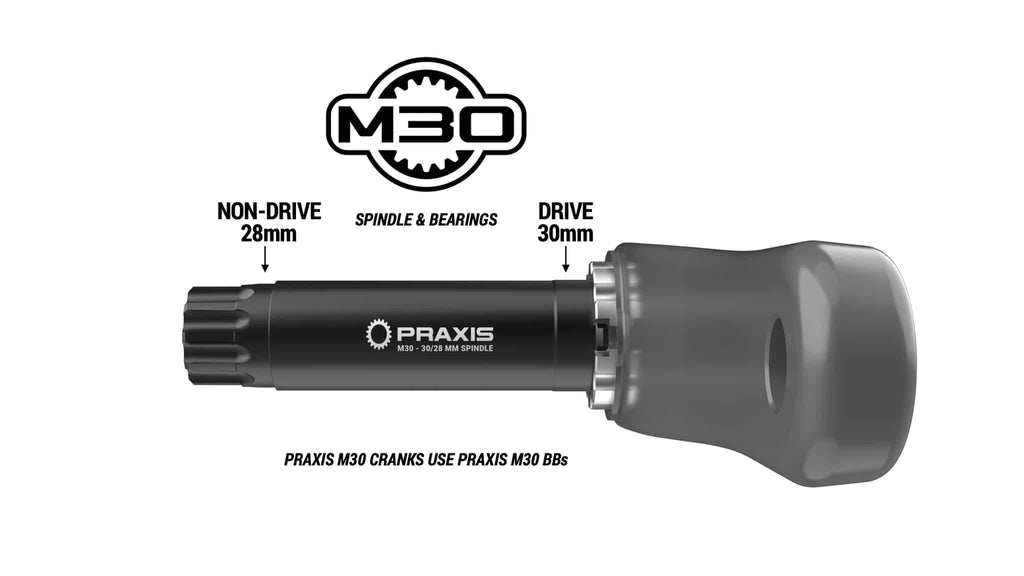

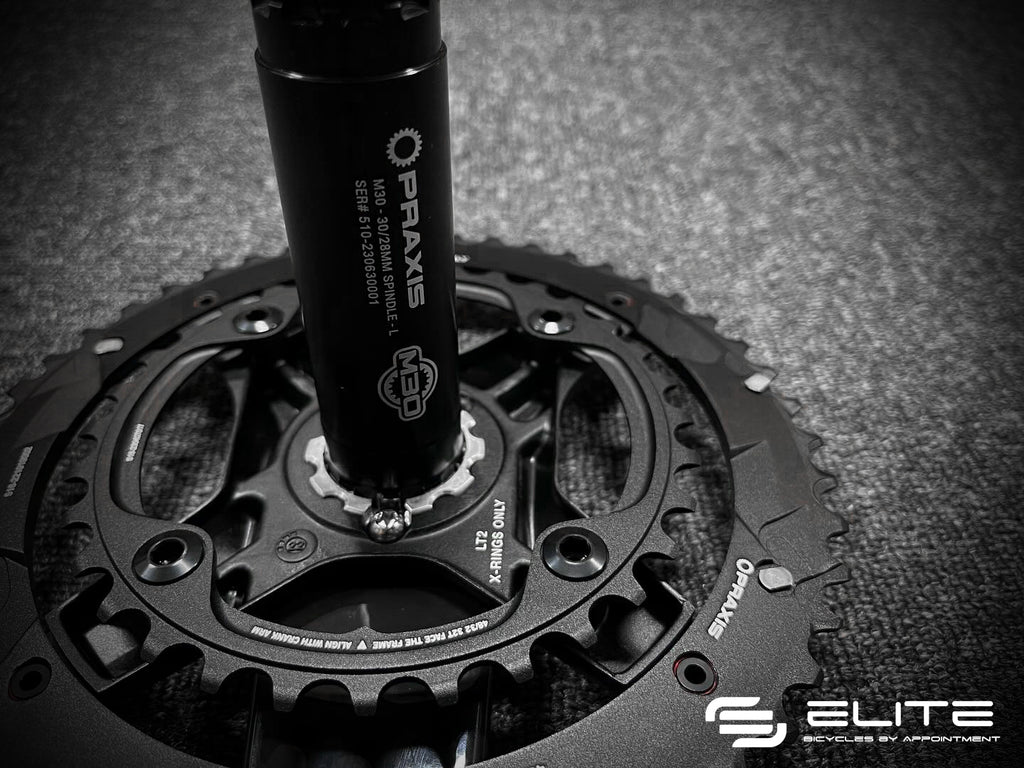

This crank requires our Praxis M30 BB
M30 = 30mm Drive Bearing / 28mm NonDrive Bearing
Offered in BSA / BB86 / T47 I.B / T47 E.B / BB30 / PF30 / 386EVO / BBRight
|
| MAIN BOLT |
8mm Alloy Main crank bolt for Install/Self-Extract |
| TECHNOLOGY |

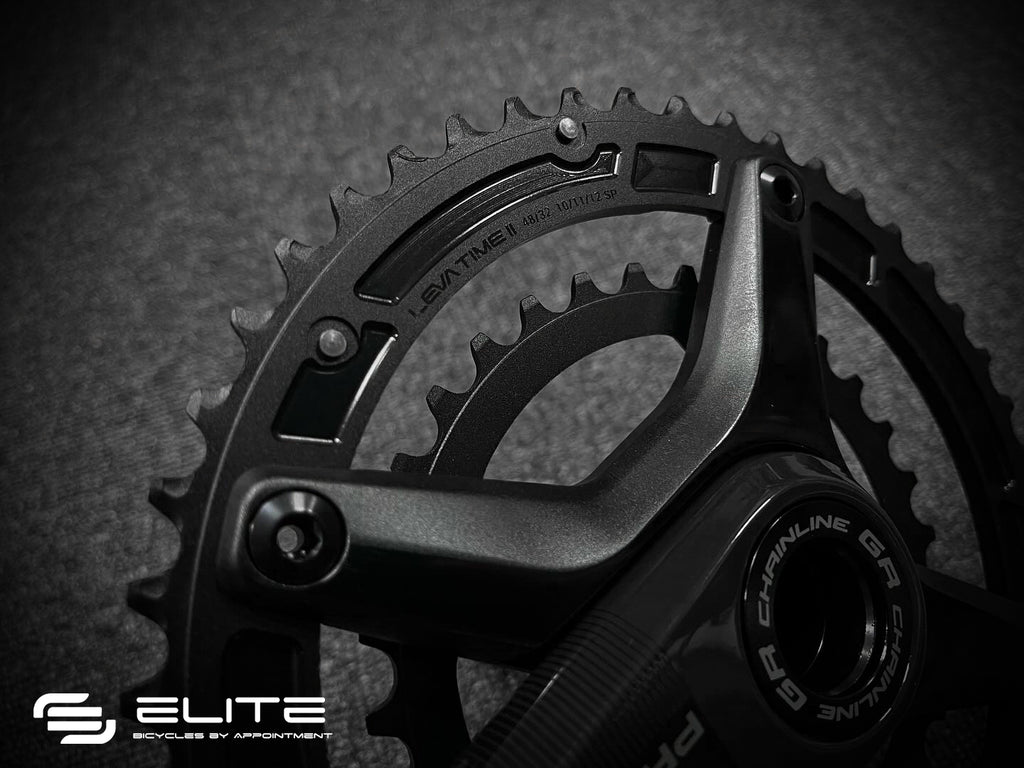

Cold Forged Ring Manufacturing
LevaTime II Shifting |
