GO FARTHER

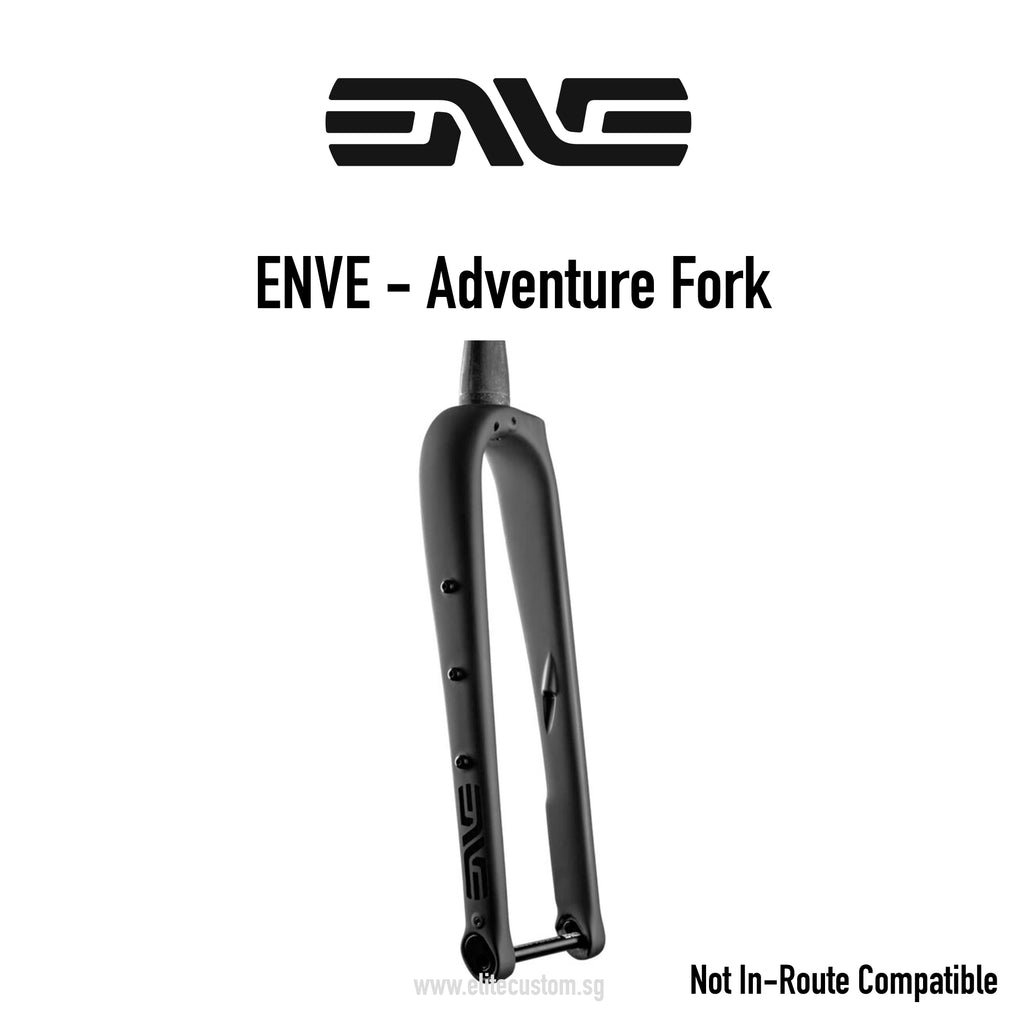

A carbon fork designed for bikepacking and endless exploration. Experience easier carrying of all possible accessories for everything from overnight endeavors to epic self-supported excursions with the ENVE Adventure Fork.
• Application
Bikepacking, Gravel, Cargo
• Weight: 575g
• Tire Clearance
29×2.1 (700×53) / 27.5 x 2.4
29×2.3 (700×58) / 27.5 x 2.6
• Axle Flip-Chips
55.5mm Rake with 406mm Axle-To-Crown
49mm Rake with 398mm Axle-To-Crown
• Three-Pack Accessory Mounts
• Dynamo Routing for Lights and Electronics Charging
• Lifetime Incident Protection and 5 Year Factory Warranty
| Drop-out Chip Position |
49mm Rake |
55.5mm Rake |
| Material |
Carbon |
Carbon |
| Accessory Mounts |
Yes (M5 Bolts) |
Yes (M5 Bolts) |
| Weight |
575g |
575g |
| Steerer Tube Length |
350mm |
350mm |
| Crown Race Diameter |
1.5" |
1.5" |
| Rake |
49mm |
55.5mm |
| Axle To Crown |
398mm |
406mm |
| Brake |
Disc |
Disc |
| Brake Mount |
Flat Mount |
Flat Mount |
| Low Mount Rack Capacity |
18kg |
18kg |
| Front Mount Rack Capacity |
10kg |
10kg |
| 3-Pack Mount Capacity |
3kg per Side |
3kg per Side |
| Axle Compatibility |
12x100mm |
12x100mm |
| Compatible Rotor Sizes |
140mm, 160mm |
140mm, 160mm |
| Max Tire Clearance |
29" x 2.1" (700x53) / 27.5" x 2.4" |
29" x 2.3" (700x58) / 27.5" x 2.6" |
| Torque Spec: Steerer Tube |
5.5nm |
5.5nm |
| Torque Spec: Axle |
8nm |
8nm |
