XC TO THE HIGHEST LEVEL

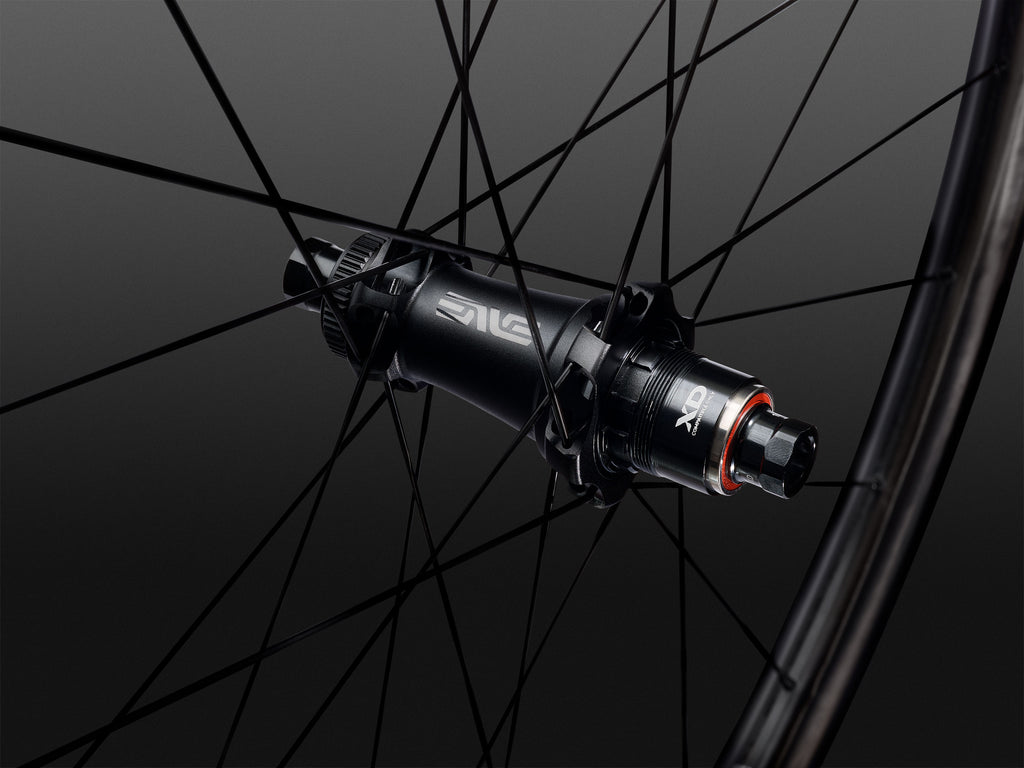

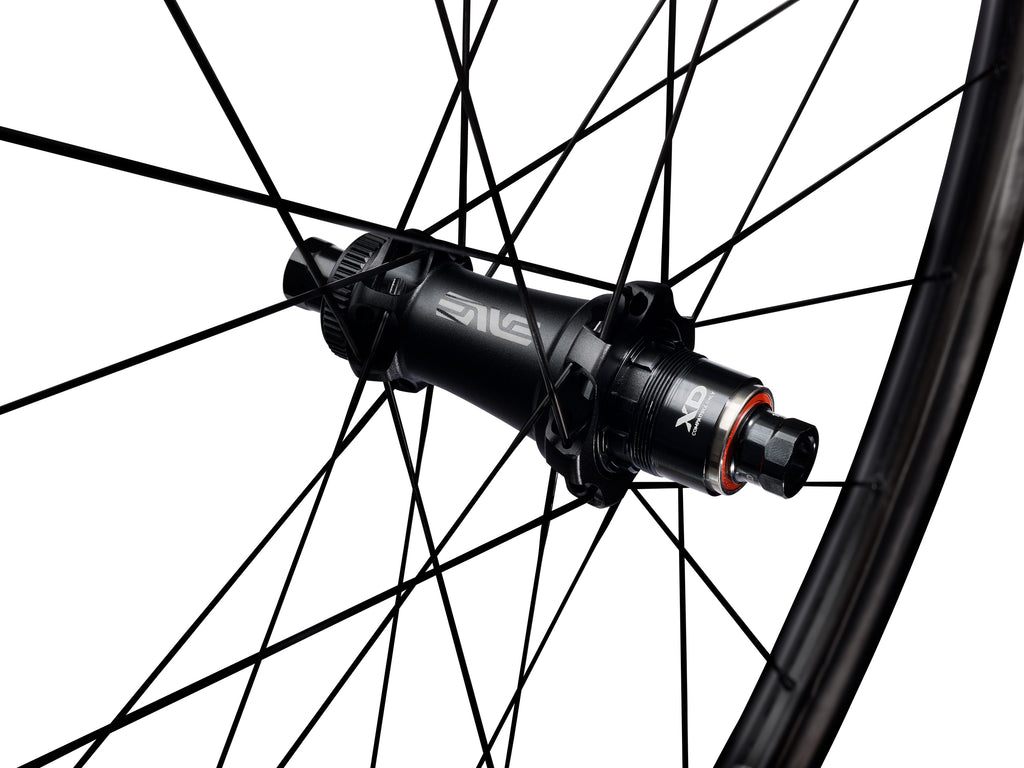

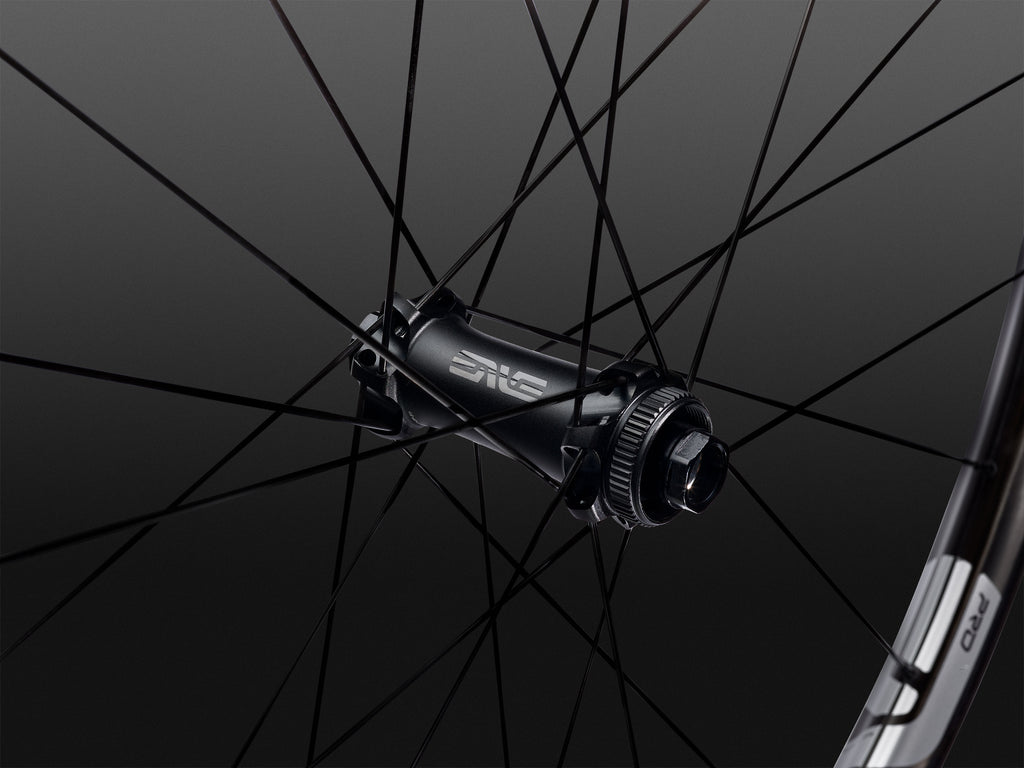

The all-new M5 Pro builds upon a legacy of cross-country racing performance with the ultimate balance of weight savings, power transfer, and durability. The “Pro” designation indicates the M5’s no-holds-barred approach to its development and racing pedigree. Built to ENVE’s INNERDRIVE hubs, the M5 Pro is ready for the most challenging XC race tracks.

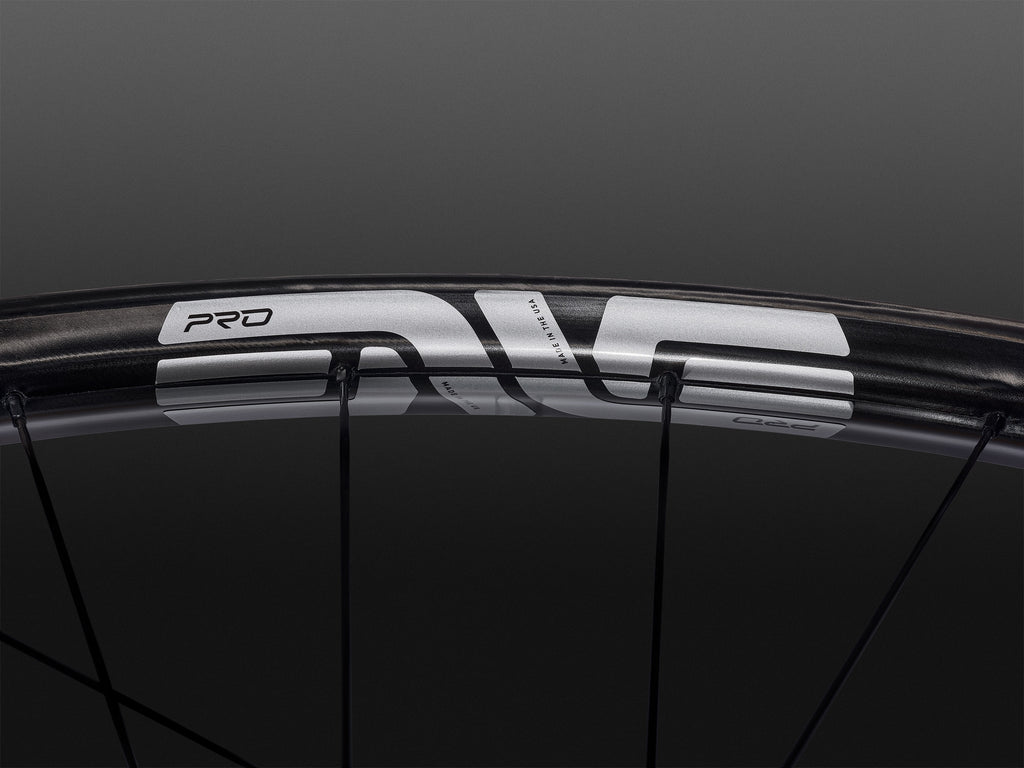

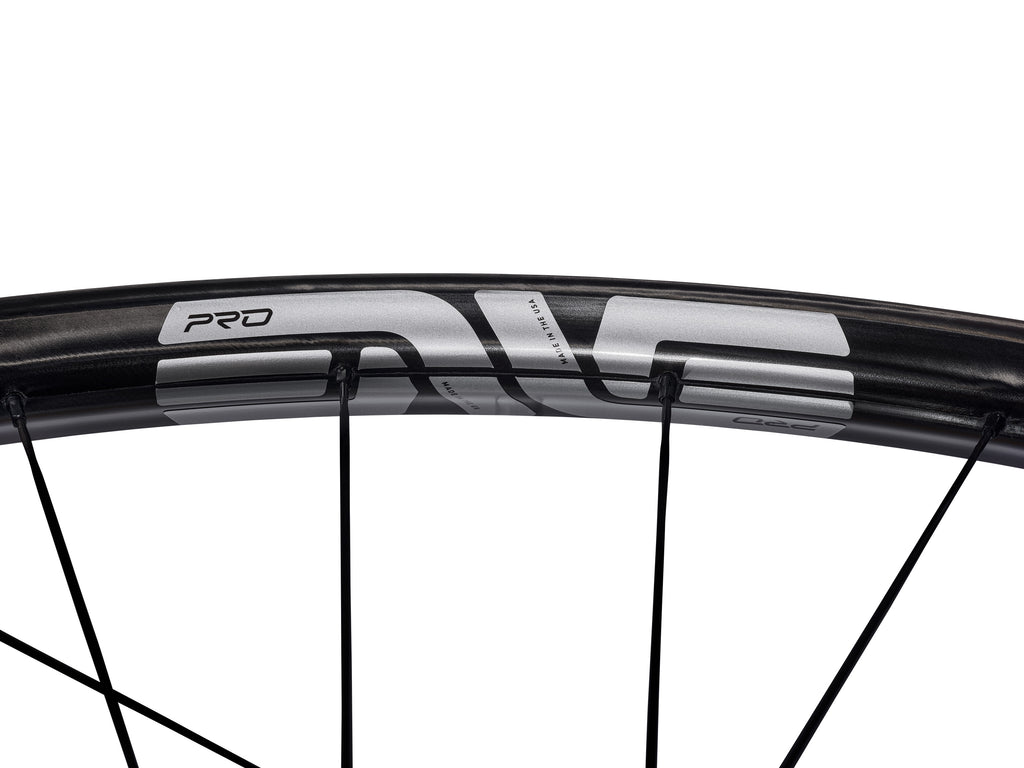

The M5 Pro marks a new era in M Series cross-country wheels, raising the bar for speed, efficiency, and toughness. It is the result of a more than four-year development project during which ENVE worked closely with its professional athletes to create something that would give the fastest endurance athletes an edge. Unique front and rear rim construction combined with an all-new shallow rim shape offer an unmatched blend of characteristics, designed to go far and fast.
Built for cross-country race applications
Product Details:
- 1325g total system weight with tape and valves
- Front and rear-specific construction and geometry
- Inner-Rim Width Front: 29mm
- Inner-Rim Width Rear: 27mm
- Wide Hookless Bead - XC optimized anti-pinch flat protection
- Alloy external nipples with Nyloc thread-locking inserts
- Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection

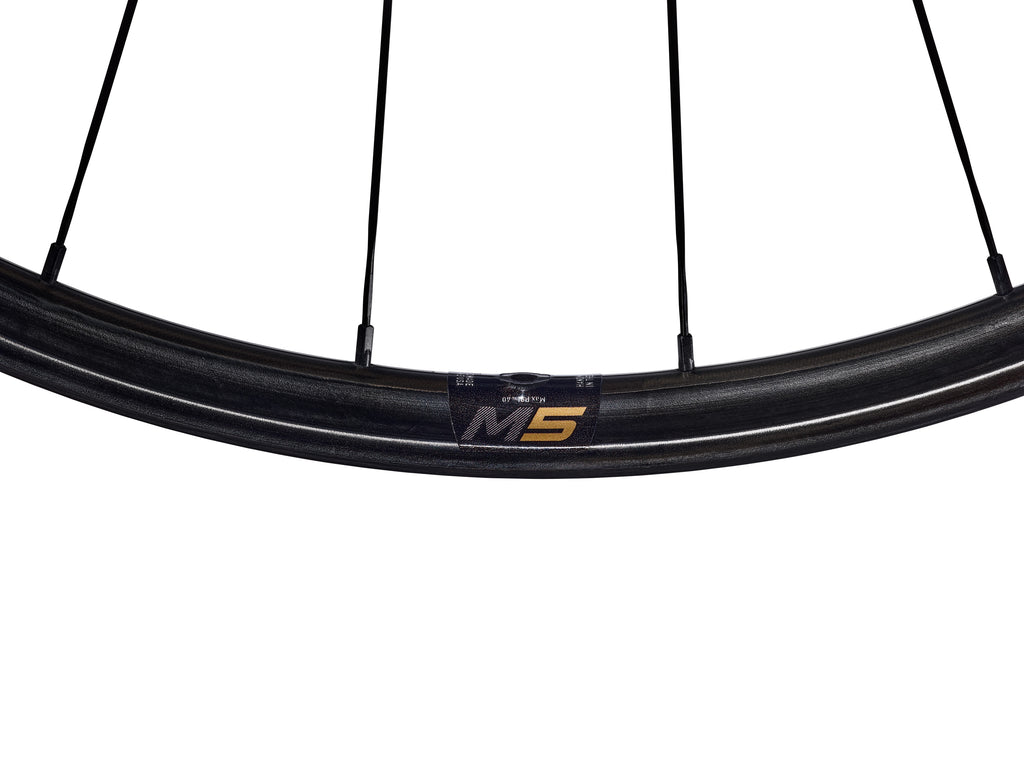

M5
| |

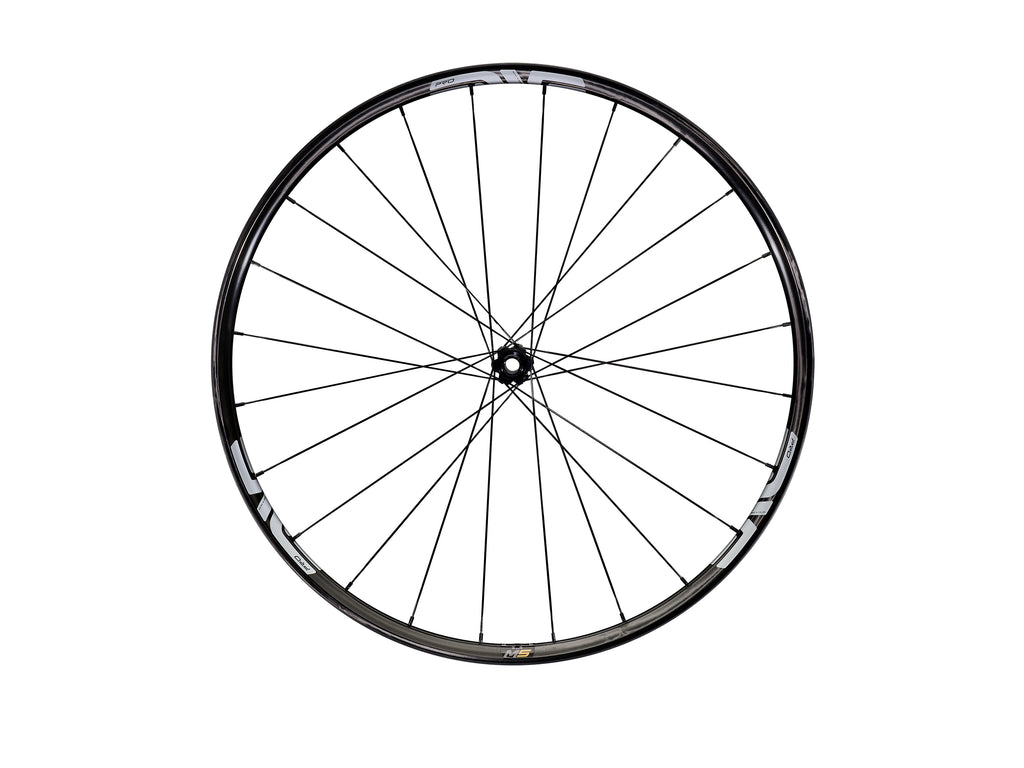

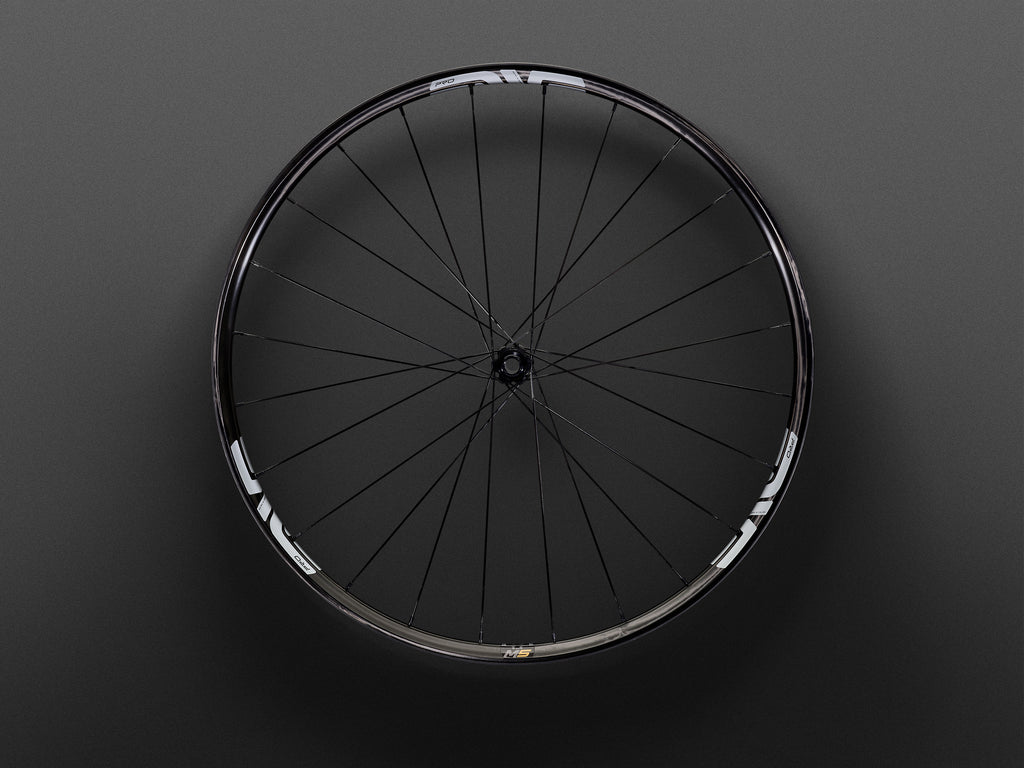

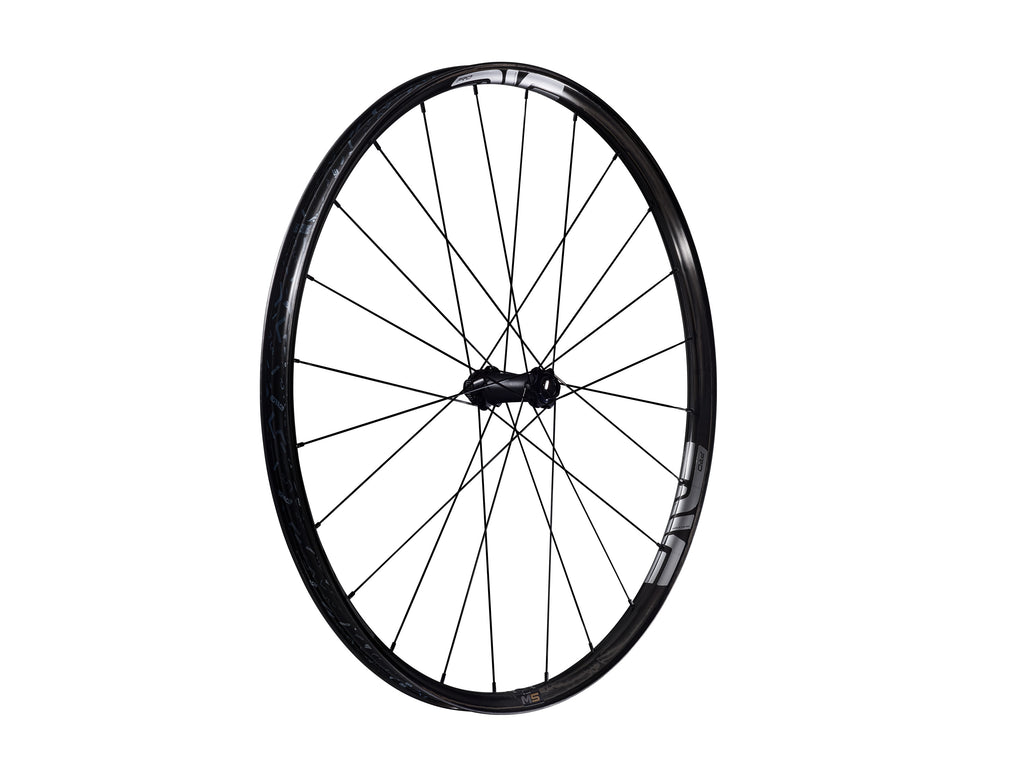

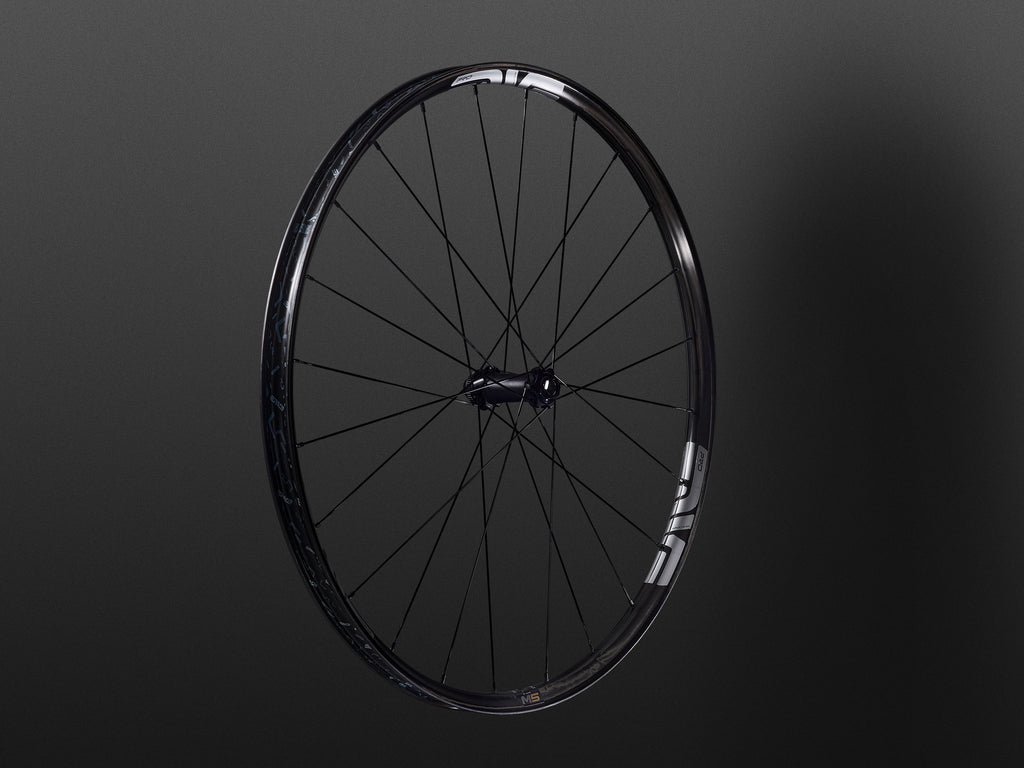

Front
|

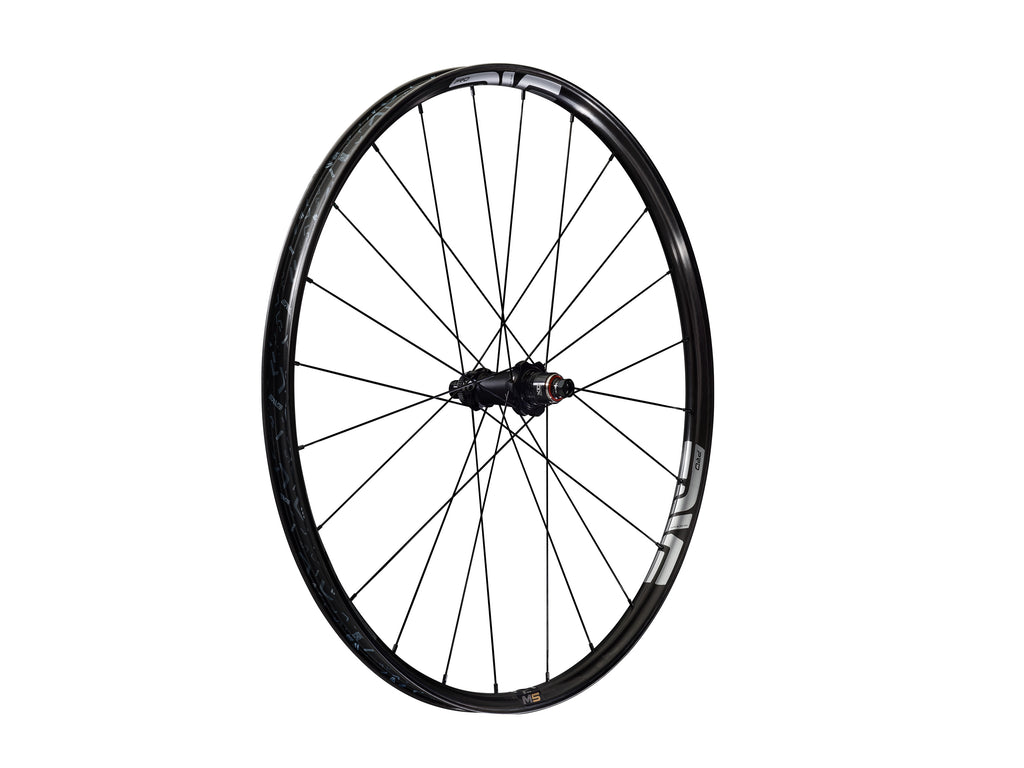

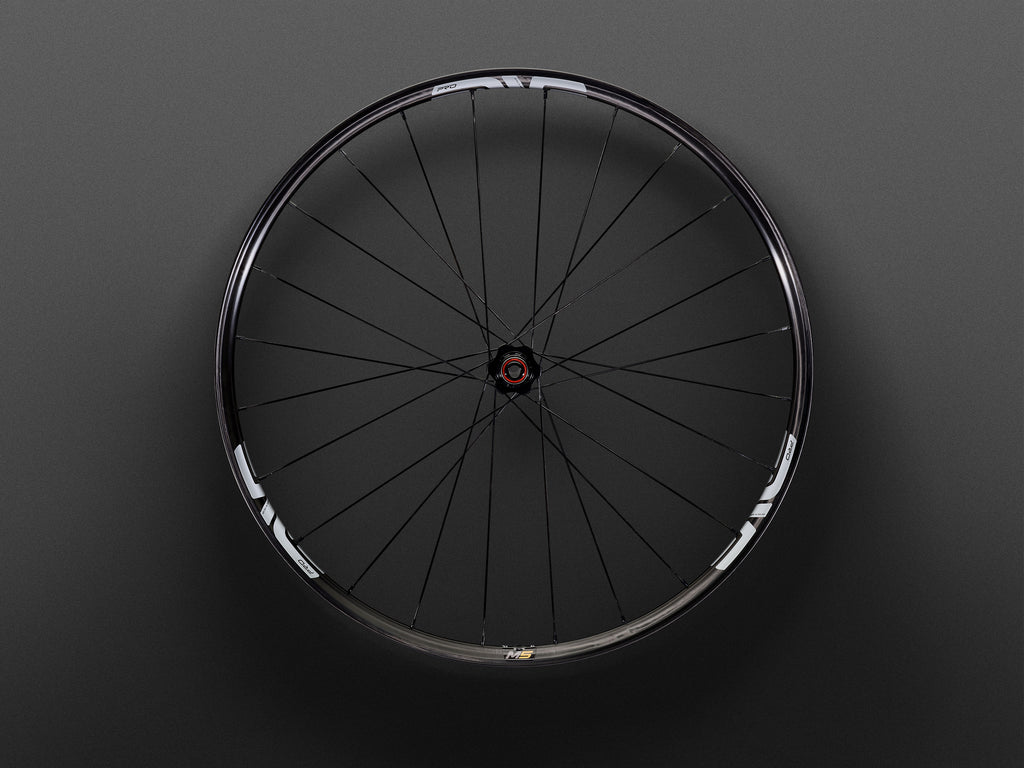

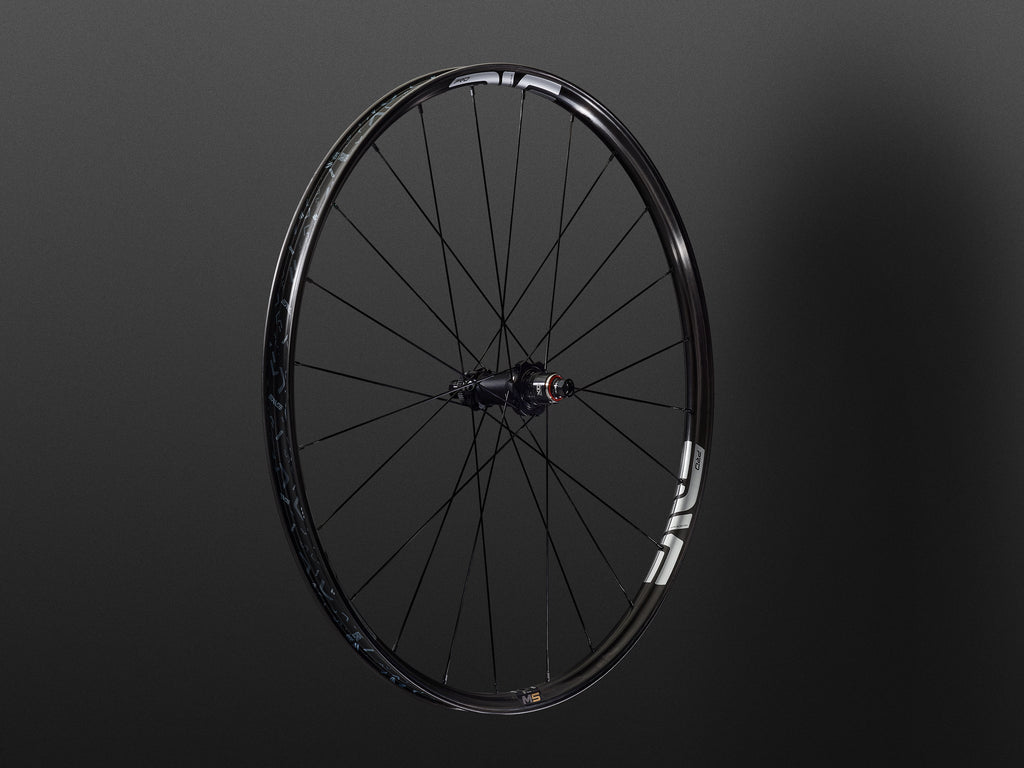

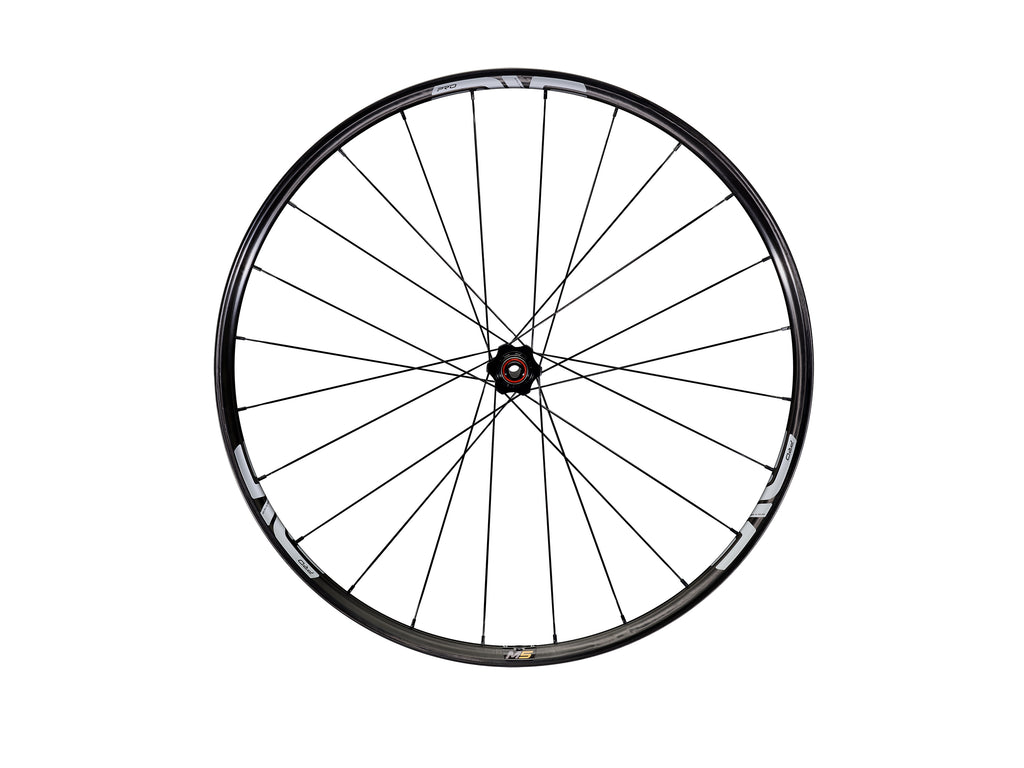

Rear
|
|
Rim Weight
|
345g
|
360g
|
Wheelset System Weight
(*includes Valves & Tape)
|
1325g*
|
|
| Internal Rim Width |
29mm |
27mm
|
| Hook Width |
4.2mm |
4.7mm
|
| Hole Count |
24 |
24
|
| Depth |
20mm |
20mm
|
| Pinch Flat Technology |
Wide Hookless Bead |
Wide Hookless Bead
|
| Spokes |
CX Ray Straight Pull OH |
CX Ray Straight Pull OH |
| Spoke Length (INNERDRIVE HUBS) |
300mm |
300mm |
| Nipples |
Alpina Nylock Alloy External |
Alpina Nylock Alloy External |
| Spoke Tension |
120kgf |
120kgf |
| Brake Type |
Centerlock |
Centerlock |
| Part Number |
FW 29 M5 24h INDR SP CL 15x110
100-2320-001
|
RW 29 M5 24h INDR SP CL 12x148 MS
100-2320-002
|
|
|
RW 29 M5 24h INDR SP CL 12x148 XD
100-2320-003
|
|
|
|
For Custom wheelbuilds, please contact us at: info@elitecustom.sg or Whatsapp us at +65 62562028.
