Foundation Carbon for Modern XC

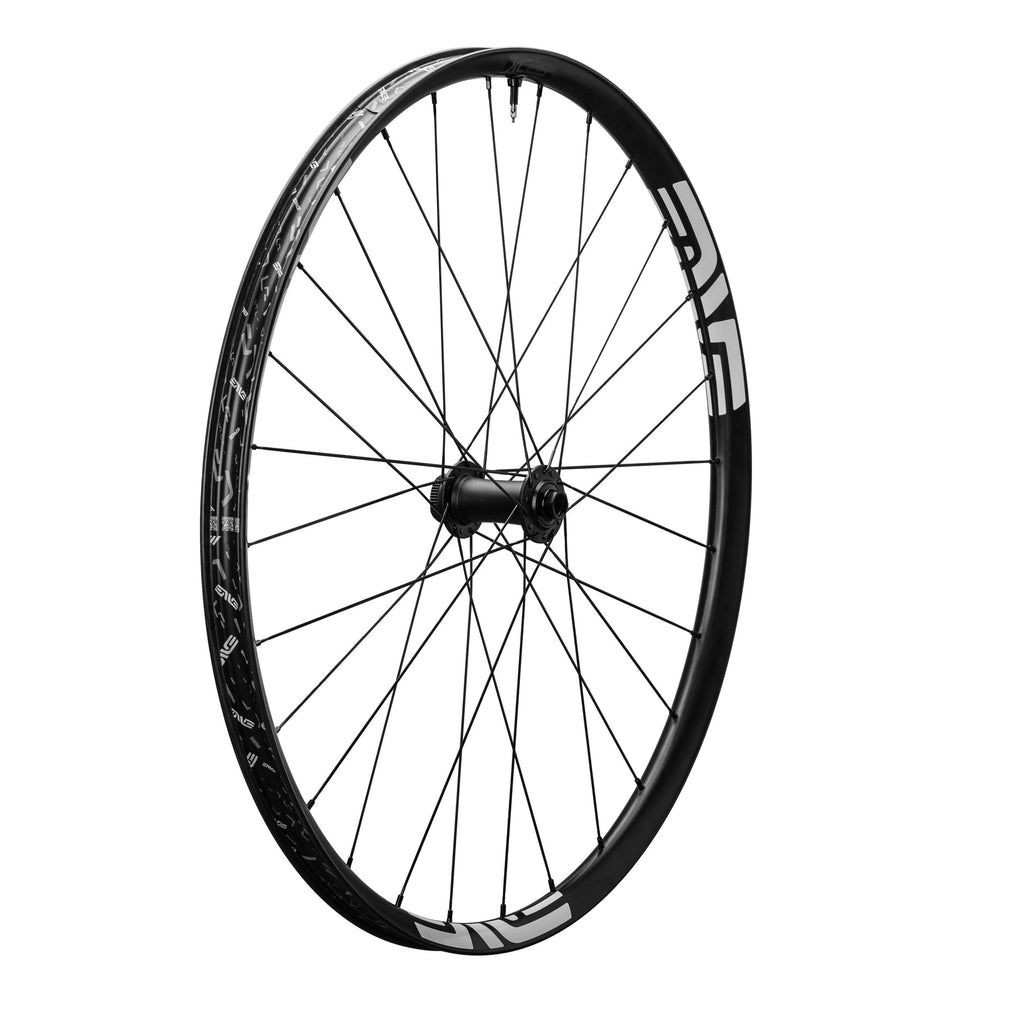

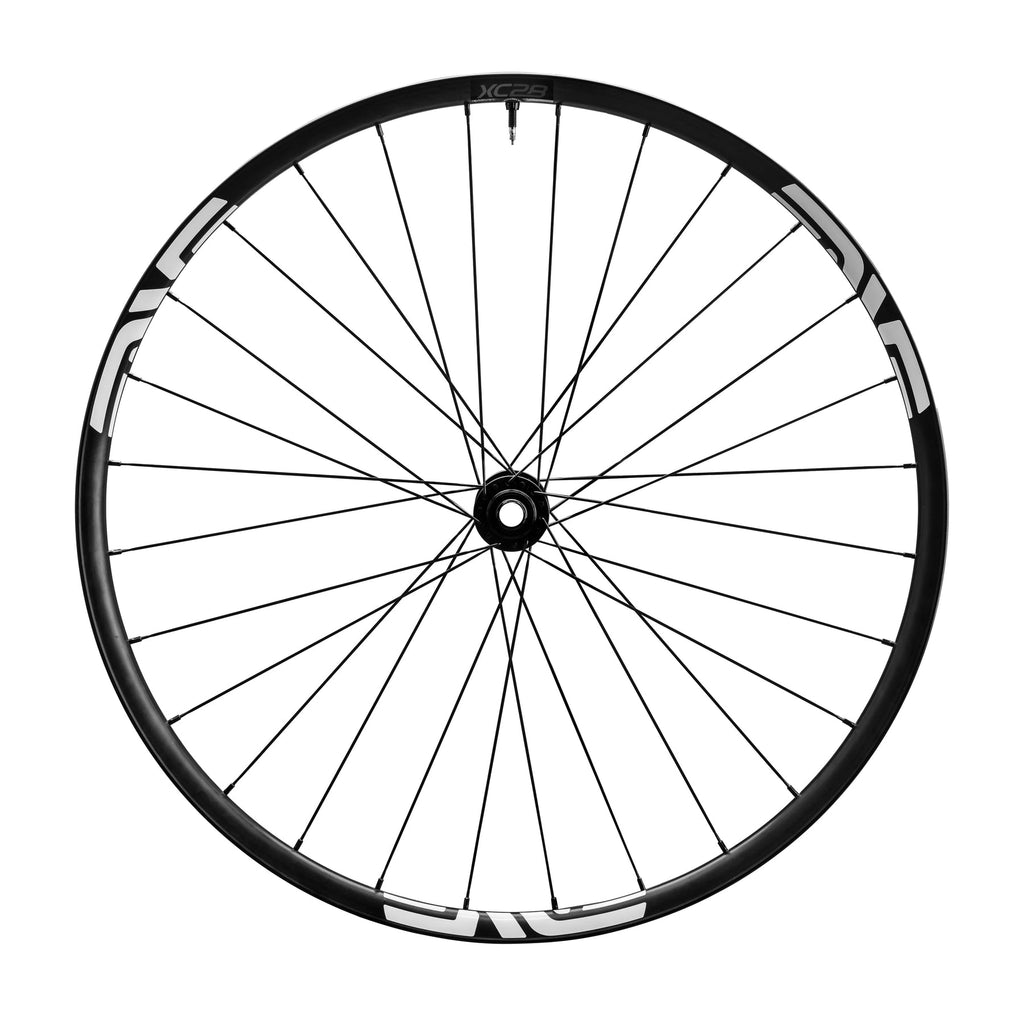

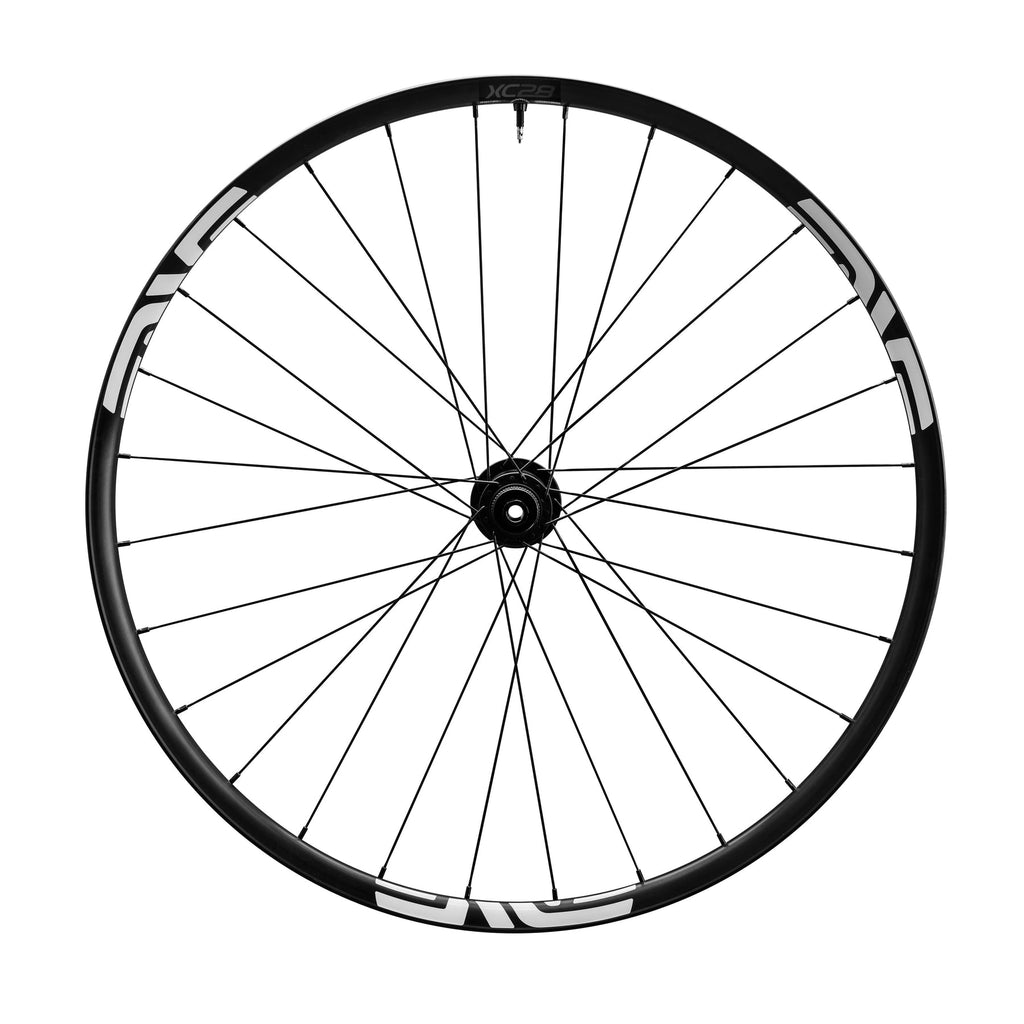

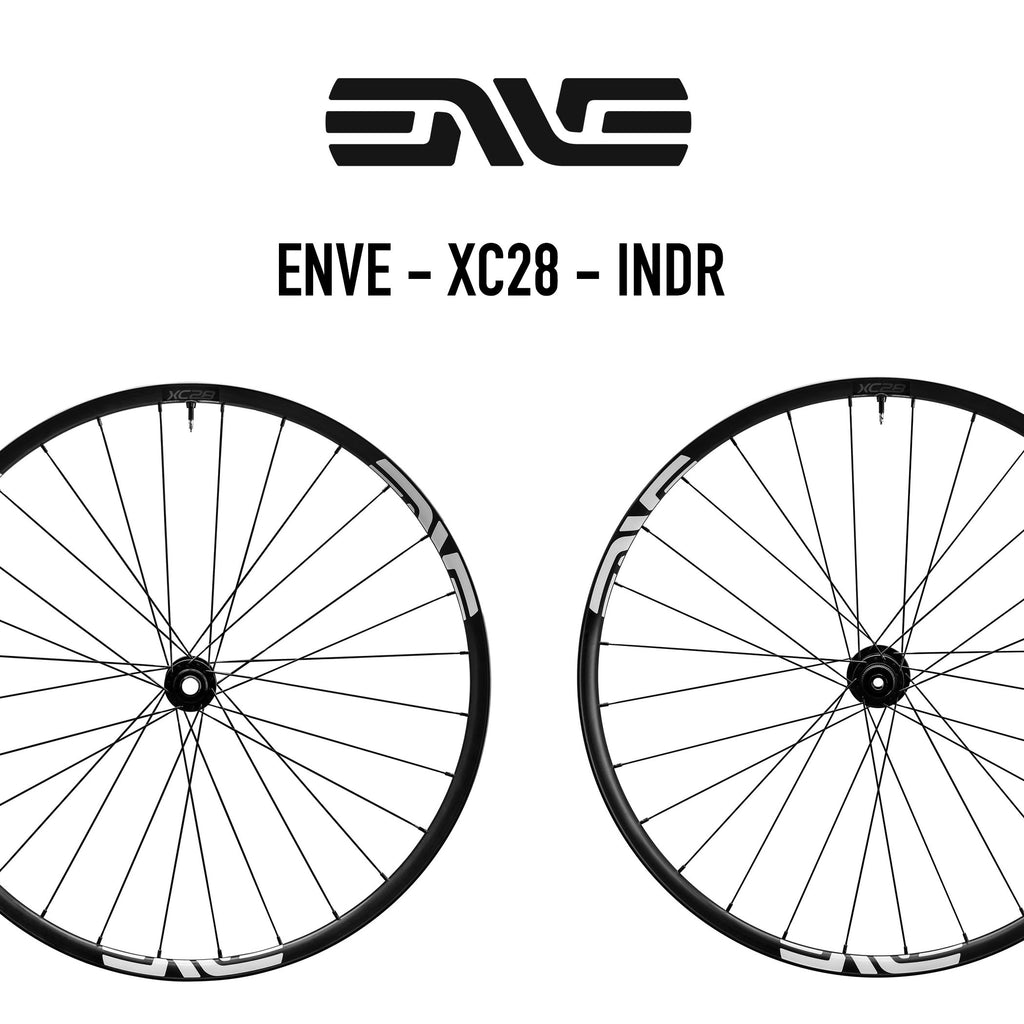

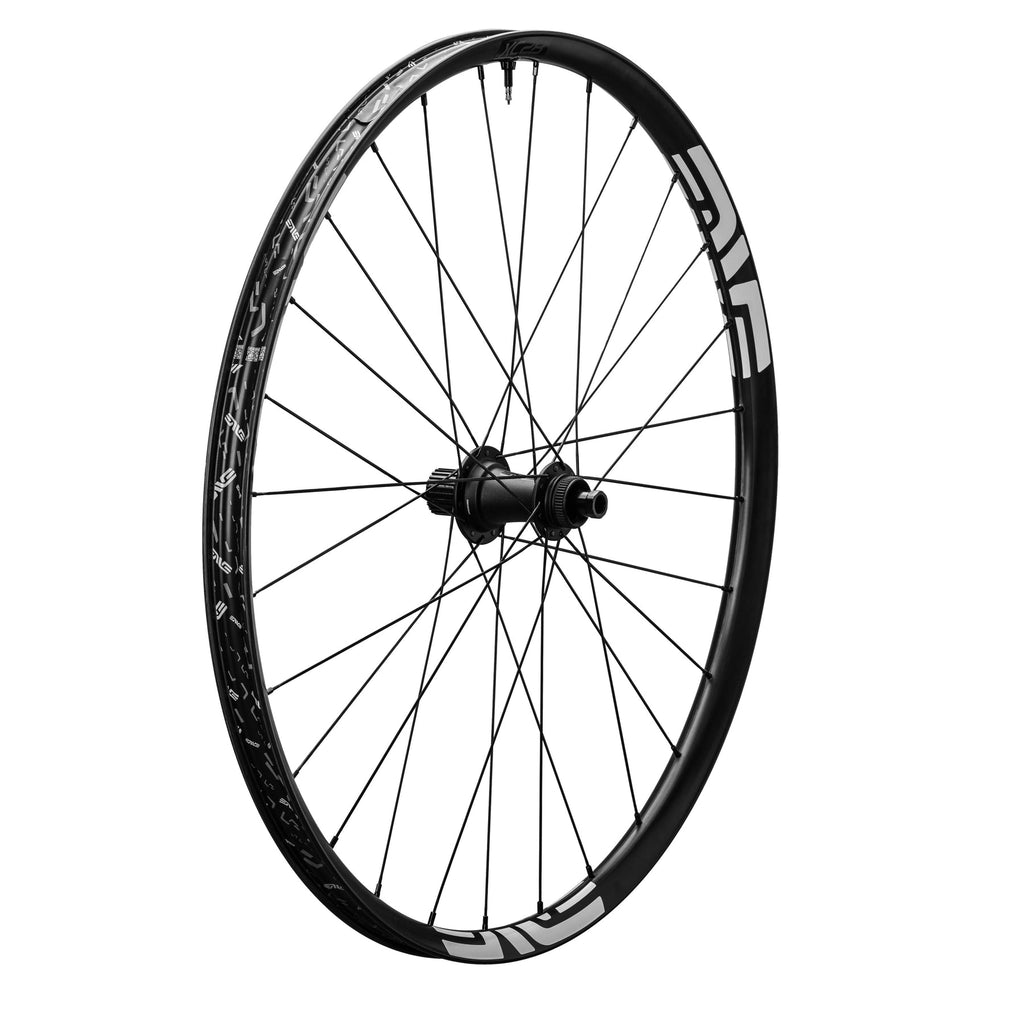

Born from the development of the latest M Series and inspired by the proven durability of the AM30, the new XC28 Carbon Wheel brings ENVE’s carbon expertise to riders who want high‑end performance at a more accessible price. The XC28 is aimed directly at the needs of today’s cross‑country and trail riders who want a light, responsive, and durable wheelset.
Product Details:
- The XC28 is built for modern XC racers and trail riders, optimized around a 2.4” tire and an inner rim width of 28mm.
- 1516g wheelset weight (+/- 3%)

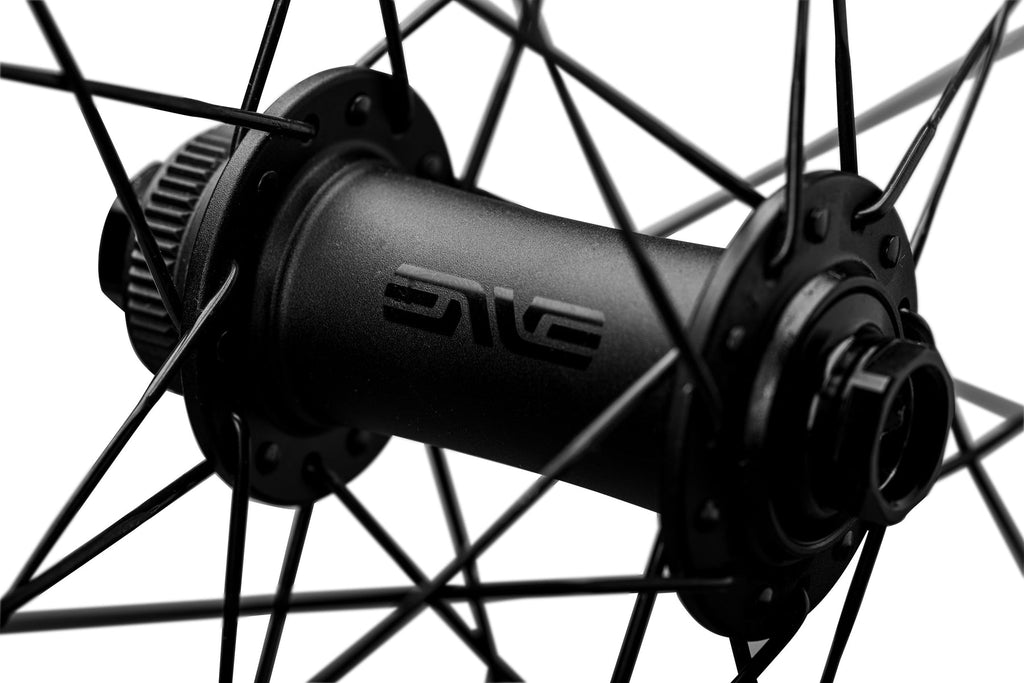

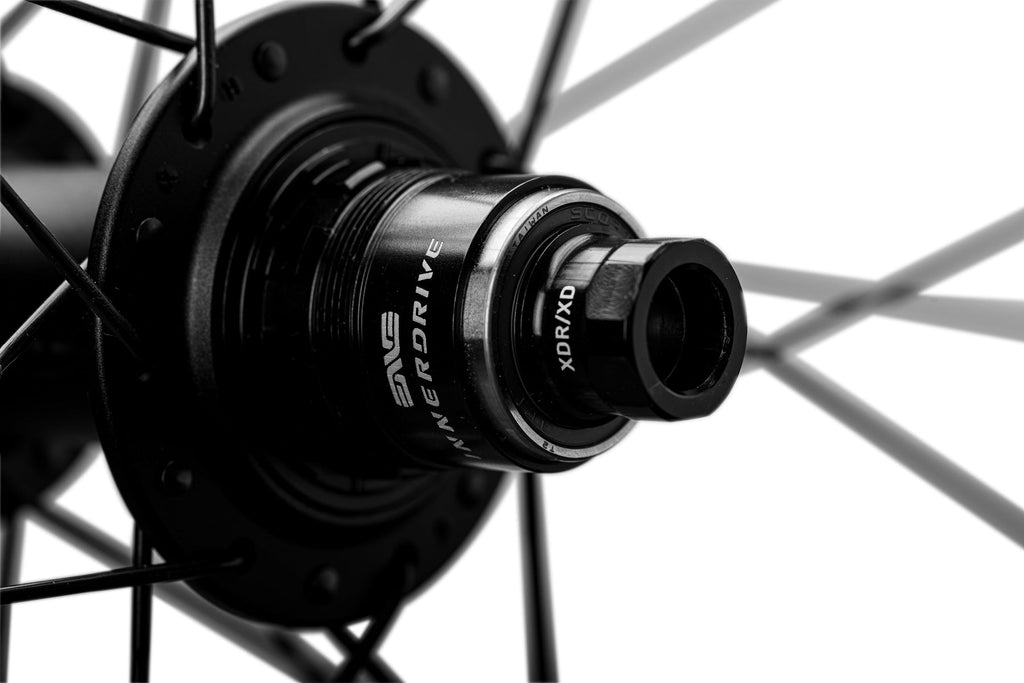

- ENVE Innerdrive Foundation hubs
|
Build Specs:
|
Front |
Rear |
| Spokes |
Sapim CX-Ray J-Bend |
| Hub |
ENVE Innerdrive Foundation |
ENVE Innerdrive - Foundation |
| Hub Spacing |
15mm x 110mm |
12mm x 148mm |
| Nipples |
Alpina Nylock Brass |
| Spoke Tension |
120kgf |
| Brake Type |
Centerlock |
Dimensions:
|
Front |
Rear |
| Effective Rim Diameter (ERD) |
622mm |
| Internal Rim Width |
28mm |
| Sidewall Width |
3.8mm |
| Pinch Flat Technology |
Wide Hookless Bead |
| Hole Count |
28 |
| Depth |
21mm |
| Tubeless Tape Width |
32mm |
| Tubeless Valve Length |
35mm |
35mm |
| Hub Spacing |
15mm x 110mm |
12mm x 148mm |
| Spoke Tension |
120kgf |
| Brake Type |
Centerlock |
Weights:
|
Front |
Rear |
| Rim Weight |
385g |
385g |
| Wheel Weight |
722g |
824g |
| Wheelset Weight |
1516g (Includes Tape and Valves - XD Freehub) |
Tire Optimization:
|
Front |
Rear |
| Recommended Tire Size |
2.25 - 2.4" |
| Maximum Tire Pressure |
40 psi |
