WHAT IT IS

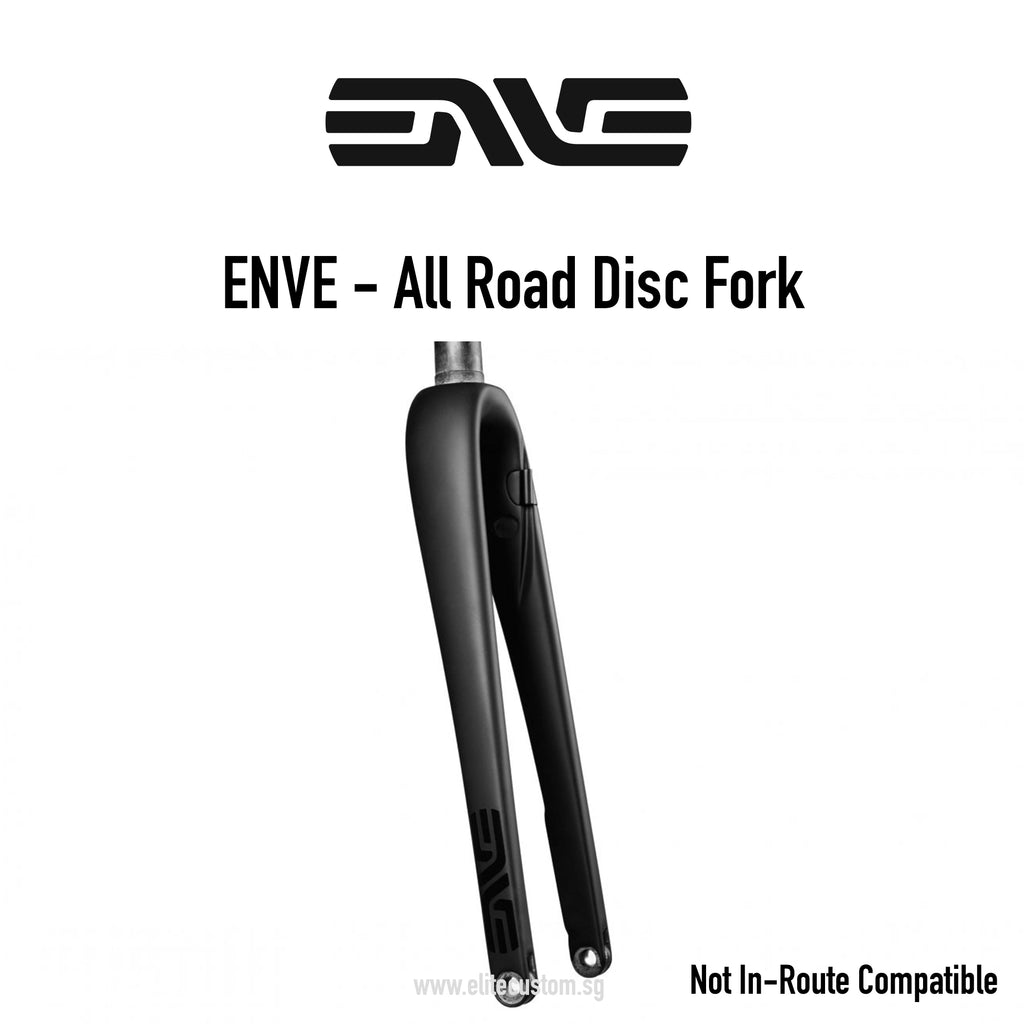

A purpose built road fork for rough roads where ample tire clearance is the name of the game and nasty weather is a given.
*Optional Fender can be ordered separately, contact us for more info: info@elitecustom.sg*
WHO IT’S FOR
Cyclists seeking the pinnacle of all-road and inclement weather fork performance with an optional easy to install/remove full protection, carbon fender
WHY WE MADE IT
More and more, cyclists are venturing off the beaten path on drop-bar bikes for both adventure and racing. Our goal was to create a fork using the same one piece, 100% uni-directional carbon fiber construction found on all ENVE forks, and add unique design elements that would be beneficial in the burgeoning gravel and all-road scene. The ENVE All Road Fork (AR) is loaded with unique features like an industry first optional integrated yet removable fender, disc brake hose clip, and 12mm thru-axle for superior braking and steering performance.
FULL DETAILS
The ENVE All Road Fork is not just a repurposed cyclocross fork or simply a carbon fiber road fork with increased tire clearance; it is a fork built from the ground up to specifically service the gravel and all-road markets. Axle to crown length and fork rake were carefully chosen for the intended use. Other key features include a 1-1/8 to 1-1/4 tapered steerer tube, 12mm thru-axle dropout, and an optional carbon fiber fender that keeps mud and water off you and your bike. The full carbon fender can be installed or removed in seconds. Brake calipers mount to the new Flat Mount standard and will work with 140 and 160mm (with adapter) rotors.
Material |
Carbon Fiber |
Steerer Tube Length |
400mm |
Rake |
47 |
Axle to Crown |
382mm |
Brake |
Disc |
Axle Compatibility |
12mm |
Max Rotor Size |
160mm |
Max Tire Clearance |
35mm w/ fender, 38mm w/o fender |
Crown Race Diameter |
1.25 |
Torque Spec: Steer |
5.5Nm |
Torque Spec: Axle |
8Nm |
Fork Weight |
450g |
Fender Weight |
150g |
