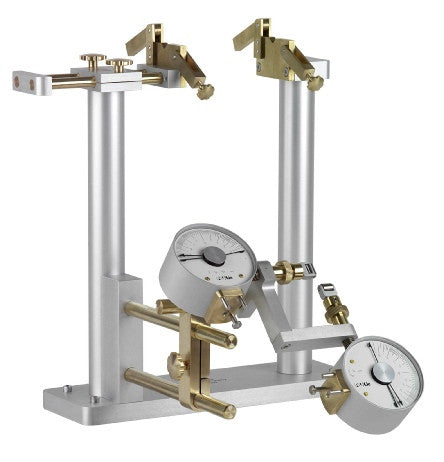

Truing stand
• High-quality processed
• All turning and milling parts
• All aluminium- and brass parts solid
• All screws out of stainless steel
• Rim width up to 110 mm
• Wheel diameter up to 768 mm
• High stability with minimum weight
• Total weight 9.2 Kg
• Space-saving and transportable
• Fastening with screws, clamp or free-standing with holder ( accessory)
• Maintenance-free
• All adjustments out of brass, therefore no displacement of the
adjusted position
• Push holder for exact position of the truing gauges
Perfect setting for the hub width
• Hub width from 69 mm up to 205 mm ( Fatbike )
• Stable double guiding for setting the hub width
• Setting the hub width on axle-height and only from one side, therefore no-play setting and without pressure on the axle position
• The position of the wheel stays constant at unclamping and clamping
• Special manufactured locking screws out of brass
From P&K Lie patented axle clamping
• Three-point bearing for absolutely constant axle position
• For axle diameter up to 16 mm
• For thru-axle you must use an adapter
• No damage of the axle because of brass
• No relocation of the axle position
• Highest repeatability at wheel change
• Only with exact axle clamping it is possible to work accurate
• The eccentricity of the wheel axle can be measured out before truing so that it doesn’t have any influence on the center measuring.
From P&K Lie developed sensor
• Easy to put in and take out the wheel because the sensor can be locked
• Precision needle bearing for scanning the rim
• Precise scanning of the lateral and radial run out
• No damage of the rim
• Every type of rim can be scanned
• Large movements of the rim is possible with the needle bearing
• Knurled nut for fine adjustment of the truing gauges
From P&K Lie developed adjuster
• Easy to adjust for different wheel diameter
• Solid brass
• Precise positioning
• Special handle screw made of solid brass
One truing stand for all wheel sizes
Normal-setting for racing-bikes, MTB and city-bikes etc.
For BMX and very small wheels there are two more adjustments
Quick adjustment for truing with tire
