Praxis M30–BB30 / PF30 / OSBB 68mm ROAD BB

Praxis M30–BB30 / PF30 / OSBB 68mm ROAD BB

68-4001R
SGD 127.50 SGD 140.00 Save SGD 12.50

Designed to be a proper BB for installing M30 spindle based cranks in either BB30, PF30, or Specialized’s 2014-2015 “OSBB” frames.  Our patent pending design keeps the cartridge bearings outboard of the frame right on Shimano™ spec for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with.

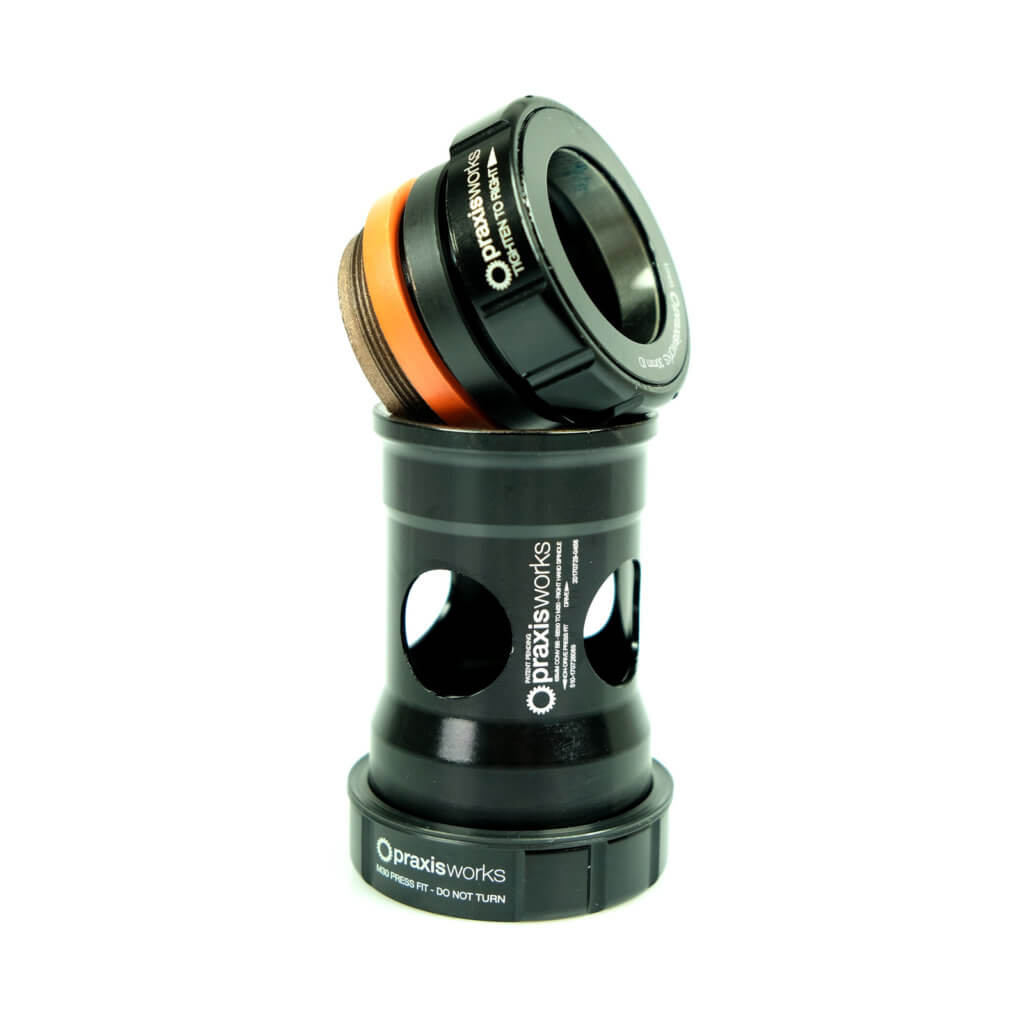

Simply press in the longer non-drive-cup, then the shorter drive cup threads into it. As the drive cup threads in, our trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and our collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.



This is our M30 BB for installing a Praxis M30 Road crank into 68mm BB30/PF30 or older Specialized OSBB road frame.



  • For Praxis M30 Spindle based cranks only. Not for other 30mm cranks.
  • For 68mm BB30,  PF30 or older Specialized OSBB road frames
  • Forged & machined heat-treated AL Cups
  • 30mm Drive bearing /28mm NonDrive bearing |  Steel bearings
  • Praxis M30 BB tool required for installation
  • Note : This BB cannot be used for MTB Cranks.
